Technithane™ Single and Multi Spiral Tube
Single, Twin, 3-Core & 4-Core stocked as standard product.
Designed for connecting fixed and moving machine parts.
Straight tails 200mm each end allow for easy connection to fittings and ensure spiral extends and retracts lineally and smoothly. Custom length tails optional.
The Shore A 98 duro tube can be easily connected with good quality push-in fittings or compression fittings type page 13 & 14.
NSF 51® certification for water & food applications
Tube remains flexible at temperatures as low as -5 Celsius and will retain its working pressure up to 60 Celsius.
Standard single core colour = Light-blue
Twin core = Light-blue + Black
3-Core = Light-blue + Black + Yellow
4-Core = Light-blue + Black + Yellow + White
Custom spirals can be produced up to 12-core and your chosen colours. Please contact us for assistance. Special colours or arrangements available on request.
Working Length
This is optimum stretch length from end to end. Always best established by measuring the required distance the hose is required to stretch.
A overall compressed length
This is the overall compressed length from end to end
B & D tail lengths
These are the straight lengths at either end of the spiral.
Typically for spiral hoses these are 100mm (short tail) and 500mm (long tail)
C compressed coil or number of turns
This is the compressed coil section only. It can also be described as the counted number of turns.
E coil outside diameter
Determined by the tube size. Can be customized to change stretch ratio

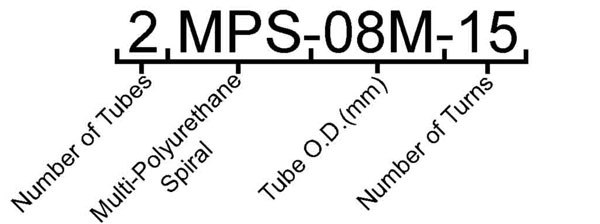

Part Numbering
Single Core Spiral
| Part Number | Hose ID (mm) | Hose OD (mm) | Working Length (M) | Total Turns | dim A (mm) | dim B (mm) | dim C (mm) | dim D (mm) | dim E (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ATPS-4-05 | 2.5 | 4.0 | 0.6 | 5 | 420 | 200 | 20 | 200 | 25 |
| ATPS-4-10 | 2.5 | 4.0 | 0.8 | 10 | 440 | 200 | 40 | 200 | 25 |
| ATPS-4-15 | 2.5 | 4.0 | 1.0 | 15 | 460 | 200 | 60 | 200 | 25 |
| ATPS-4-20 | 2.5 | 4.0 | 1.3 | 20 | 480 | 200 | 80 | 200 | 25 |
| ATPS-4-30 | 2.5 | 4.0 | 1.7 | 30 | 520 | 200 | 120 | 200 | 25 |
| ATPS-4-40 | 2.5 | 4.0 | 2.3 | 40 | 560 | 200 | 160 | 200 | 25 |
| ATPS-4-50 | 2.5 | 4.0 | 2.8 | 50 | 600 | 200 | 200 | 200 | 25 |
| ATPS-4-60 | 2.5 | 4.0 | 3.3 | 60 | 640 | 200 | 240 | 200 | 25 |
| ATPS-6-05 | 4.0 | 6.0 | .07 | 5 | 430 | 200 | 30 | 200 | 37 |
| ATPS-6-10 | 4.0 | 6.0 | 1.1 | 10 | 460 | 200 | 60 | 200 | 37 |
| ATPS-6-15 | 4.0 | 6.0 | 1.5 | 15 | 490 | 200 | 90 | 200 | 37 |
| ATPS-8-05 | 5.0 | 8.0 | 0.8 | 5 | 440 | 200 | 40 | 200 | 42 |
| ATPS-8-10 | 5.0 | 8.0 | 1.2 | 10 | 480 | 200 | 80 | 200 | 42 |
| ATPS-10-05 | 6.5 | 10.0 | 0.8 | 5 | 450 | 200 | 50 | 200 | 52 |
| ATPS-10-10 | 6.5 | 10.0 | 1.4 | 10 | 500 | 200 | 100 | 200 | 52 |
| ATPS-12-05 | 8.0 | 12.0 | 1.0 | 5 | 460 | 200 | 60 | 200 | 65 |
| ATPS-12-10 | 8.0 | 12.0 | 1.7 | 10 | 520 | 200 | 120 | 200 | 65 |
2-Core Spiral
| Part Number | Hose ID (mm) | Hose OD (mm) | Working Length (M) | Total Turns | dim A (mm) | dim B (mm) | dim C (mm) | dim D (mm) | dim E (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 2MPS-04-05 | 2.5 | 4.0 | 0.4 | 5 | 240 | 200 | 40 | 200 | 25 |
| 2MPS-04-10 | 2.5 | 4.0 | 0.6 | 10 | 280 | 200 | 80 | 200 | 25 |
| 2MPS-04-15 | 2.5 | 4.0 | 0.8 | 15 | 320 | 200 | 120 | 200 | 25 |
| 2MPS-04-20 | 2.5 | 4.0 | 1.0 | 20 | 360 | 200 | 160 | 200 | 25 |
| 2MPS-04-30 | 2.5 | 4.0 | 1.5 | 30 | 440 | 200 | 240 | 200 | 25 |
| 2MPS-04-40 | 2.5 | 4.0 | 2.0 | 40 | 520 | 200 | 320 | 200 | 25 |
| 2MPS-06-05 | 2.5 | 4.0 | 0.5 | 5 | 460 | 200 | 60 | 200 | 37 |
| 2MPS-06-10 | 4.0 | 6.0 | 0.8 | 10 | 520 | 200 | 120 | 200 | 37 |
| 2MPS-06-15 | 4.0 | 6.0 | 1.2 | 15 | 580 | 200 | 180 | 200 | 37 |
| 2MPS-06-20 | 4.0 | 6.0 | 1.6 | 20 | 640 | 200 | 240 | 200 | 37 |
| 2MPS-06-30 | 4.0 | 6.0 | 2.3 | 30 | 760 | 200 | 360 | 200 | 37 |
| 2MPS-06-40 | 4.0 | 6.0 | 3.0 | 40 | 880 | 200 | 480 | 200 | 37 |
| 2MPS-06-50 | 4.0 | 6.0 | 4.0 | 50 | 1000 | 200 | 600 | 200 | 37 |
| 2MPS-06-60 | 4.0 | 6.0 | 4.5 | 60 | 1120 | 200 | 720 | 200 | 37 |
| 2MPS-06-70 | 4.0 | 6.0 | 5.0 | 70 | 1240 | 200 | 840 | 200 | 37 |
| 2MPS-06-80 | 4.0 | 6.0 | 6.0 | 80 | 1360 | 200 | 960 | 200 | 37 |
| 2MPS-08-05 | 5.0 | 8.0 | 0.5 | 5 | 480 | 200 | 80 | 200 | 42 |
| 2MPS-08-10 | 5.0 | 8.0 | 0.9 | 10 | 460 | 200 | 160 | 200 | 42 |
| 2MPS-08-15 | 5.0 | 8.0 | 1.3 | 15 | 640 | 200 | 240 | 200 | 42 |
| 2MPS-08-20 | 5.0 | 8.0 | 1.7 | 20 | 720 | 200 | 320 | 200 | 42 |
| 2MPS-08-30 | 5.0 | 8.0 | 2.4 | 30 | 880 | 200 | 480 | 200 | 42 |
| 2MPS-08-40 | 5.0 | 8.0 | 3.2 | 40 | 1040 | 200 | 640 | 200 | 42 |
| 2MPS-08-50 | 5.0 | 8.0 | 4.0 | 50 | 1200 | 200 | 800 | 200 | 42 |
| 2MPS-08-75 | 5.0 | 8.0 | 6.0 | 75 | 1600 | 200 | 1200 | 200 | 42 |
| 2MPS-08-85 | 5.0 | 8.0 | 8.0 | 85 | 1760 | 200 | 1360 | 200 | 42 |
| 2MPS-10-05 | 6.5 | 10.0 | 0.6 | 5 | 500 | 200 | 100 | 200 | 52 |
| 2MPS-10-10 | 6.5 | 10.0 | 1.1 | 10 | 600 | 200 | 200 | 200 | 52 |
| 2MPS-10-15 | 6.5 | 10.0 | 1.6 | 15 | 700 | 200 | 300 | 200 | 52 |
| 2MPS-10-20 | 6.5 | 10.0 | 2.0 | 20 | 800 | 200 | 400 | 200 | 52 |
| 2MPS-10-30 | 6.5 | 10.0 | 3.0 | 30 | 1000 | 200 | 600 | 200 | 52 |
| 2MPS-10-40 | 6.5 | 10.0 | 3.9 | 40 | 1200 | 200 | 800 | 200 | 52 |
| 2MPS-12-05 | 8.0 | 12.0 | 0.8 | 5 | 520 | 200 | 120 | 200 | 65 |
| 2MPS-12-10 | 8.0 | 12.0 | 1.4 | 10 | 640 | 200 | 240 | 200 | 65 |
| 2MPS-12-15 | 8.0 | 12.0 | 2.0 | 15 | 760 | 200 | 360 | 200 | 65 |
| 2MPS-12-20 | 8.0 | 12.0 | 2.6 | 20 | 880 | 200 | 480 | 200 | 65 |
| 2MPS-12-30 | 8.0 | 12.0 | 3.9 | 30 | 1120 | 200 | 720 | 200 | 65 |
| 2MPS-12-40 | 8.0 | 12.0 | 5.1 | 40 | 1360 | 200 | 960 | 200 | 65 |
3-Core Spiral
| Part Number | Hose ID (mm) | Hose OD (mm) | Working Length (M) | Total Turns | dim A (mm) | dim B (mm) | dim C (mm) | dim D (mm) | dim E (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 3MPS-04-05 | 2.5 | 4.0 | 0.4 | 5 | 460 | 200 | 60 | 200 | 25 |
| 3MPS-04-10 | 2.5 | 4.0 | 0.7 | 10 | 520 | 200 | 120 | 200 | 25 |
| 3MPS-04-15 | 2.5 | 4.0 | 1.0 | 15 | 580 | 200 | 180 | 200 | 25 |
| 3MPS-04-20 | 2.5 | 4.0 | 1.3 | 20 | 640 | 200 | 240 | 200 | 25 |
| 3MPS-04-30 | 2.5 | 4.0 | 1.9 | 30 | 760 | 200 | 360 | 200 | 25 |
| 3MPS-04-40 | 2.5 | 4.0 | 2.4 | 40 | 880 | 200 | 480 | 200 | 25 |
| 3MPS-06-05 | 2.5 | 4.0 | 0.5 | 5 | 490 | 200 | 90 | 200 | 37 |
| 3MPS-06-10 | 4.0 | 6.0 | 0.9 | 10 | 580 | 200 | 180 | 200 | 37 |
| 3MPS-06-15 | 4.0 | 6.0 | 1.4 | 15 | 670 | 200 | 270 | 200 | 37 |
| 3MPS-06-20 | 4.0 | 6.0 | 1.9 | 20 | 760 | 200 | 360 | 200 | 37 |
| 3MPS-06-30 | 4.0 | 6.0 | 2.7 | 30 | 940 | 200 | 540 | 200 | 37 |
| 3MPS-06-40 | 4.0 | 6.0 | 3.6 | 40 | 1040 | 200 | 720 | 200 | 37 |
| 3MPS-08-05 | 5.0 | 8.0 | 0.6 | 5 | 520 | 200 | 120 | 200 | 42 |
| 3MPS-08-10 | 5.0 | 8.0 | 1.0 | 10 | 640 | 200 | 180 | 200 | 42 |
| 3MPS-08-15 | 5.0 | 8.0 | 1.5 | 15 | 760 | 200 | 300 | 200 | 42 |
| 3MPS-08-20 | 5.0 | 8.0 | 2.0 | 20 | 880 | 200 | 360 | 200 | 42 |
| 3MPS-08-30 | 5.0 | 8.0 | 2.9 | 30 | 1120 | 200 | 600 | 200 | 42 |
| 3MPS-08-40 | 5.0 | 8.0 | 3.8 | 40 | 1360 | 200 | 720 | 200 | 42 |
| 3MPS-10-05 | 6.5 | 10.0 | 0.7 | 5 | 550 | 200 | 150 | 200 | 52 |
| 3MPS-10-10 | 6.5 | 10.0 | 1.3 | 10 | 700 | 200 | 300 | 200 | 52 |
| 3MPS-10-15 | 6.5 | 10.0 | 1.9 | 15 | 850 | 200 | 450 | 200 | 52 |
| 3MPS-10-20 | 6.5 | 10.0 | 2.6 | 20 | 1000 | 200 | 600 | 200 | 52 |
| 3MPS-10-30 | 6.5 | 10.0 | 3.7 | 30 | 1300 | 200 | 900 | 200 | 52 |
| 3MPS-10-40 | 6.5 | 10.0 | 4.9 | 40 | 1500 | 200 | 1200 | 200 | 52 |
| 3MPS-12-05 | 8.0 | 12.0 | 0.9 | 5 | 580 | 200 | 180 | 200 | 65 |
| 3MPS-12-10 | 8.0 | 12.0 | 1.8 | 10 | 760 | 200 | 360 | 200 | 65 |
| 3MPS-12-15 | 8.0 | 12.0 | 2.6 | 15 | 940 | 200 | 540 | 200 | 65 |
| 3MPS-12-20 | 8.0 | 12.0 | 3.4 | 20 | 1120 | 200 | 720 | 200 | 65 |
| 3MPS-12-30 | 8.0 | 12.0 | 5.0 | 30 | 1480 | 200 | 1080 | 200 | 65 |
| 3MPS-12-40 | 8.0 | 12.0 | 6.7 | 40 | 1840 | 200 | 1440 | 200 | 65 |
4-Core Spiral
| Part Number | Hose ID (mm) | Hose OD (mm) | Working Length (M) | Total Turns | dim A (mm) | dim B (mm) | dim C (mm) | dim D (mm) | dim E (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 4MPS-04-05 | 2.5 | 4.0 | 0.4 | 5 | 240 | 200 | 40 | 200 | 33 |
| 4MPS-04-10 | 2.5 | 4.0 | 0.7 | 10 | 280 | 200 | 80 | 200 | 33 |
| 4MPS-04-15 | 2.5 | 4.0 | 1.0 | 15 | 320 | 200 | 120 | 200 | 33 |
| 4MPS-04-20 | 2.5 | 4.0 | 1.3 | 20 | 360 | 200 | 160 | 200 | 33 |
| 4MPS-04-30 | 2.5 | 4.0 | 1.9 | 30 | 440 | 200 | 240 | 200 | 33 |
| 4MPS-04-40 | 2.5 | 4.0 | 2.4 | 40 | 520 | 200 | 320 | 200 | 33 |
| 4MPS-06-05 | 2.5 | 4.0 | 0.5 | 5 | 460 | 200 | 60 | 200 | 49 |
| 4MPS-06-10 | 4.0 | 6.0 | 0.9 | 10 | 520 | 200 | 120 | 200 | 49 |
| 4MPS-06-15 | 4.0 | 6.0 | 1.4 | 15 | 580 | 200 | 180 | 200 | 49 |
| 4MPS-06-20 | 4.0 | 6.0 | 1.9 | 20 | 640 | 200 | 240 | 200 | 49 |
| 4MPS-06-30 | 4.0 | 6.0 | 2.7 | 30 | 760 | 200 | 360 | 200 | 49 |
| 4MPS-06-40 | 4.0 | 6.0 | 3.6 | 40 | 880 | 200 | 480 | 200 | 49 |
| 4MPS-08-05 | 5.0 | 8.0 | 0.6 | 5 | 480 | 200 | 80 | 200 | 49 |
| 4MPS-08-10 | 5.0 | 8.0 | 1.0 | 10 | 460 | 200 | 160 | 200 | 49 |
| 4MPS-08-15 | 5.0 | 8.0 | 1.5 | 15 | 640 | 200 | 240 | 200 | 49 |
| 4MPS-08-20 | 5.0 | 8.0 | 2.0 | 20 | 720 | 200 | 320 | 200 | 49 |
| 4MPS-08-30 | 5.0 | 8.0 | 2.9 | 30 | 880 | 200 | 480 | 200 | 49 |
| 4MPS-08-40 | 5.0 | 8.0 | 3.8 | 40 | 1040 | 200 | 640 | 200 | 49 |
| 4MPS-10-05 | 6.5 | 10.0 | 0.7 | 5 | 500 | 200 | 100 | 200 | 72 |
| 4MPS-10-10 | 6.5 | 10.0 | 1.3 | 10 | 600 | 200 | 200 | 200 | 72 |
| 4MPS-10-15 | 6.5 | 10.0 | 1.9 | 15 | 700 | 200 | 300 | 200 | 72 |
| 4MPS-10-20 | 6.5 | 10.0 | 2.6 | 20 | 800 | 200 | 400 | 200 | 72 |
| 4MPS-10-30 | 6.5 | 10.0 | 3.7 | 30 | 1000 | 200 | 600 | 200 | 72 |
| 4MPS-10-40 | 6.5 | 10.0 | 4.9 | 40 | 1200 | 200 | 800 | 200 | 72 |
| 4MPS-12-05 | 8.0 | 12.0 | 0.9 | 5 | 520 | 200 | 120 | 200 | 90 |
| 4MPS-12-10 | 8.0 | 12.0 | 1.8 | 10 | 640 | 200 | 240 | 200 | 90 |
| 4MPS-12-15 | 8.0 | 12.0 | 2.6 | 15 | 760 | 200 | 360 | 200 | 90 |
| 4MPS-12-20 | 8.0 | 12.0 | 3.4 | 20 | 880 | 200 | 480 | 200 | 90 |
| 4MPS-12-30 | 8.0 | 12.0 | 5.0 | 30 | 1120 | 200 | 720 | 200 | 90 |
| 4MPS-12-40 | 8.0 | 12.0 | 6.7 | 40 | 1360 | 200 | 960 | 200 | 90 |
