Steel (Chrome Plated) Euro Couplings
A wide variety of pneumatic One-Touch Connection coupling for general pneumatic applications.
Euro couplings are compatible with CEJN 320 Series couplings.
Specifications
| Media: | Compressed Air |
| Working Temperature Range: | -10 to 60ºC (Air) |
| Maximum Working Pressure: | 220 psi (15 bar) |
| Burst Pressure: | 290 psi (20 bar) |
| Flowrate: | 2000 litres / min @ 6bar |
Material
| Main Body: | Chrome Plated Steel |
| Sleeve: | Chrome Plated Steel with heat treatment |
| Valve: | Chrome Plated Brass |
| Seals: | NBR |
| Balls: | Chrome Plated Steel |
Daisen Euro Coupling Plug
Male Thread:
| Part Number | Thread Size |
|---|---|
| 32P-2M | 1/4 BSP |
| 32P-3M | 3/8 BSP |
| 32P-4M | 1/2 BSP |
Female Thread:
| Part Number | Thread Size |
|---|---|
| 32P-2F | 1/4 BSP |
| 32P-3F | 3/8 BSP |
| 32P-4F | 1/2 BSP |
Hose Barb Connection:
| Part Number | For Hose |
|---|---|
| 32P-2B | 1/4 (6.35mm) |
| 32P-3B | 3/8 (10mm) |
| 32P-4B | 1/2 (13mm) |
Polyurethane Hose Nut Connection:
| Part Number | For Hose |
|---|---|
| 32P-5H | 5 × 8 mm |
| 32P-65H | 6.5 × 10 mm |
| 32P-8H | 8 × 12 mm |
| 32P-11H | 11 × 16 mm |
Free-Angle Plug:
| Part Number | Thread |
|---|---|
| FP-2M-C320 | 1/4 (6.35mm) |
Daisen Euro Coupling Socket
Male Thread:
| Part Number | Thread |
|---|---|
| 32SO-2M | 1/4 BSP |
| 32SO-3M | 3/8 BSP |
| 32SO-4M | 1/2 BSP |
Female Thread:
| Part Number | Thread |
|---|---|
| 32SO-2F | 1/4 BSP |
| 32SO-3F | 3/8 BSP |
| 32SO-4F | 1/2 BSP |

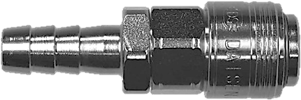

Hose Barb Connection:
| Part Number | For Hose |
|---|---|
| 32SO-2B | 1/4 (6.35mm) |
| 32SO-3B | 3/8 (10mm) |
| 32SO-4B | 1/2 (13mm) |
Polyurethane Hose Nut Connection:
| Part Number | For Hose |
|---|---|
| 32SO-5H | 5 x 8mm |
| 32SO-65H | 6.5 x 10mm |
| 32SO-8H | 8 x 12mm |
| 32SO-11H | 11 x 16mm |
