Aignep INOX Stainless Steel Couplings – Euro Profile
A wide variety of One-Touch Connection coupling suitable for food applications.
Aignep INOX Stainless Steel Couplings offer a One-Touch connection, Stainless Steel 316 sleeve and body and FKM seals.
Specifications
| Media: | Fluids, Chemical or Air |
| Working Temperature Range: | -15 to 200ºC |
| Maximum Working Pressure: | 232 psi (16 bar) |
| Burst Pressure: | 505 psi (35 bar) |
| Flowrate: | 2400 litres / min @ 6bar |
Material
| Main Body: | Stainless Steel 316 |
| Sleeve: | Stainless Steel 316 |
| Seals: | Food FKM |
| Balls: | Steel |

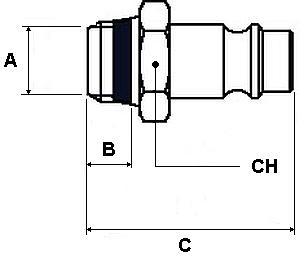

Aignep INOX Plug
Male Thread:
| Part Number | Thread Size | B (mm) | C (mm) |
|---|---|---|---|
| 63260-1/4 | 1/4 BSP | 7 | 33.5 |
| 63260-3/8 | 3/8 BSP | 7.5 | 34 |
| 63260-1/2 | 1/2 BSP | 9 | 36 |
Female Thread:
| Part Number | Thread Size | B (mm) | C (mm) |
|---|---|---|---|
| 63262-1/4 | 1/4 BSP | 11 | 33 |
| 63262-3/8 | 3/8 BSP | 11.5 | 33.5 |
| 63262-1/2 | 1/2 BSP | 15 | 37.0 |
Aignep INOX Socket
Male Thread:
| Part Number | Thread Size | B (mm) | C (mm) | D (mm) |
|---|---|---|---|---|
| 63190-1/4 | 1/4 BSP | 7 | 50 | 24 |
| 63190-3/8 | 3/8 BSP | 50.5 | 24 | |
| 63190-1/2 | 1/2 BSP | 9 | 52 | 24 |
Female Thread:
| Part Number | Thread Size | B (mm) | C (mm) | D (mm) |
|---|---|---|---|---|
| 63192-1/4 | 1/4 BSP | 11 | 51.5 | 24 |
| 63192-3/8 | 3/8 BSP | 11.5 | 52 | 24 |
| 63192-1/2 | 1/2 BSP | 15 | 56.5 | 24 |
