Button Sockets – JIS (Japan) Profile
Daisen Button Couplers feature a safe, single-handed method of disconnection. By depressing the release button once, pressure is safely vented before removing the plug.
The outer mold cover protects delicate surfaces.
Specifications
| Media: | Compressed Air |
| Working Temperature Range: | -5 to 60ºC (Air) |
| Maximum Working Pressure: | 175 psi (12 bar) |
| Burst Pressure: | 290 psi (20 bar) |

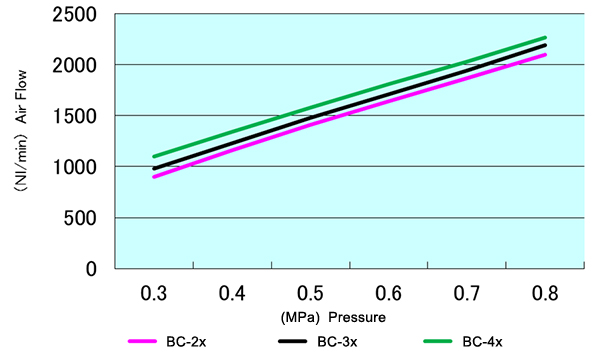

| Flowrate: | See diagram below |
Material
| Main Body: | Chrome Plated Steel |
| Sleeve: | Chrome Plated Steel with heat treatment |
| Valve: | Chrome Plated Brass |
| Seals: | NBR |
| Balls: | Chrome Plated Steel |

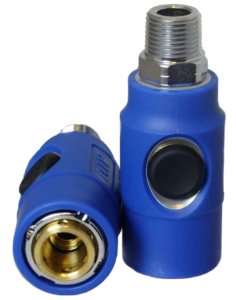

Daisen Button Socket
Male Thread:
| Part Number | Thread Size | A (mm) | D (mm) | Weight (g) |
|---|---|---|---|---|
| BC-2M | 1/4 BSP | 83 | 35 | 154 |
| BC-3M | 3/8 BSP | 83 | 35 | 158 |
| BC-4M | 1/2 BSP | 85 | 35 | 172 |
Female Thread:
| Part Number | Thread Size | A (mm) | D (mm) | Weight (g) |
|---|---|---|---|---|
| BC-2F | 1/4 BSP | 82 | 35 | 164 |
| BC-3F | 3/8 BSP | 83 | 35 | 170 |
| BC-4F | 1/2 BSP | 84 | 35 | 182 |
Hose Barb Connection:
| Part Number | For Hose | A (mm) | C (mm) | D (mm) | Weight (g) |
|---|---|---|---|---|---|
| BC-2B | 1/4 (6.35mm) | 94 | 9 | 35 | 154 |
| BC-3B | 3/8 (10mm) | 96 | 10 | 35 | 156 |
| BC-4B | 1/2 (13mm) | 99 | 15 | 35 | 168 |
Polyurethane Hose Nut Connection:
| Part Number | For Hose | A (mm) | D (mm) | Weight (g) |
|---|---|---|---|---|
| BC-65 | 6.5 × 10 mm | 89 | 35 | 168 |
| BC-80 | 8 × 12 mm | 90 | 35 | 178 |
| BC-85 | 8.5 × 12.5 mm | 90 | 35 | 178 |
| BC-110 | 11 × 16 mm | 95 | 35 | 210 |
